What’s The Distinction Between RAM And ROM Reminiscence?

Textbooks can have you consider it is a easy query with an equally easy reply. And it’s in idea, however there’s fairly a little bit of nuance to unpack.

Basically, random entry reminiscence (RAM) is the reminiscence your machine thinks with, and read-only reminiscence (ROM) is the reminiscence it remembers with. RAM holds regardless of the processor is engaged on and it is all misplaced when energy is lower; ROM shops the everlasting directions a tool wants to begin up with, retaining them no matter energy state.

However hardly something in a contemporary machine is really read-only anymore. That features the bits nonetheless named after ROM, corresponding to firmware chips in PCs and the “ROM” Xiaomi lists on spec sheets for telephones just like the Redmi 13.

Every thing you open on a tool entails RAM. While you open a browser tab, for instance, it will get copied from storage into RAM, permitting the processor to achieve it rapidly (a matter of nanoseconds). DRAM is probably the most dominant sort of RAM, and it shops every bit as a cost in a tiny capacitor that will get refreshed hundreds of instances per second. It may possibly’t be refreshed if energy is lower, so if that occurs, every little thing saved there disappears.

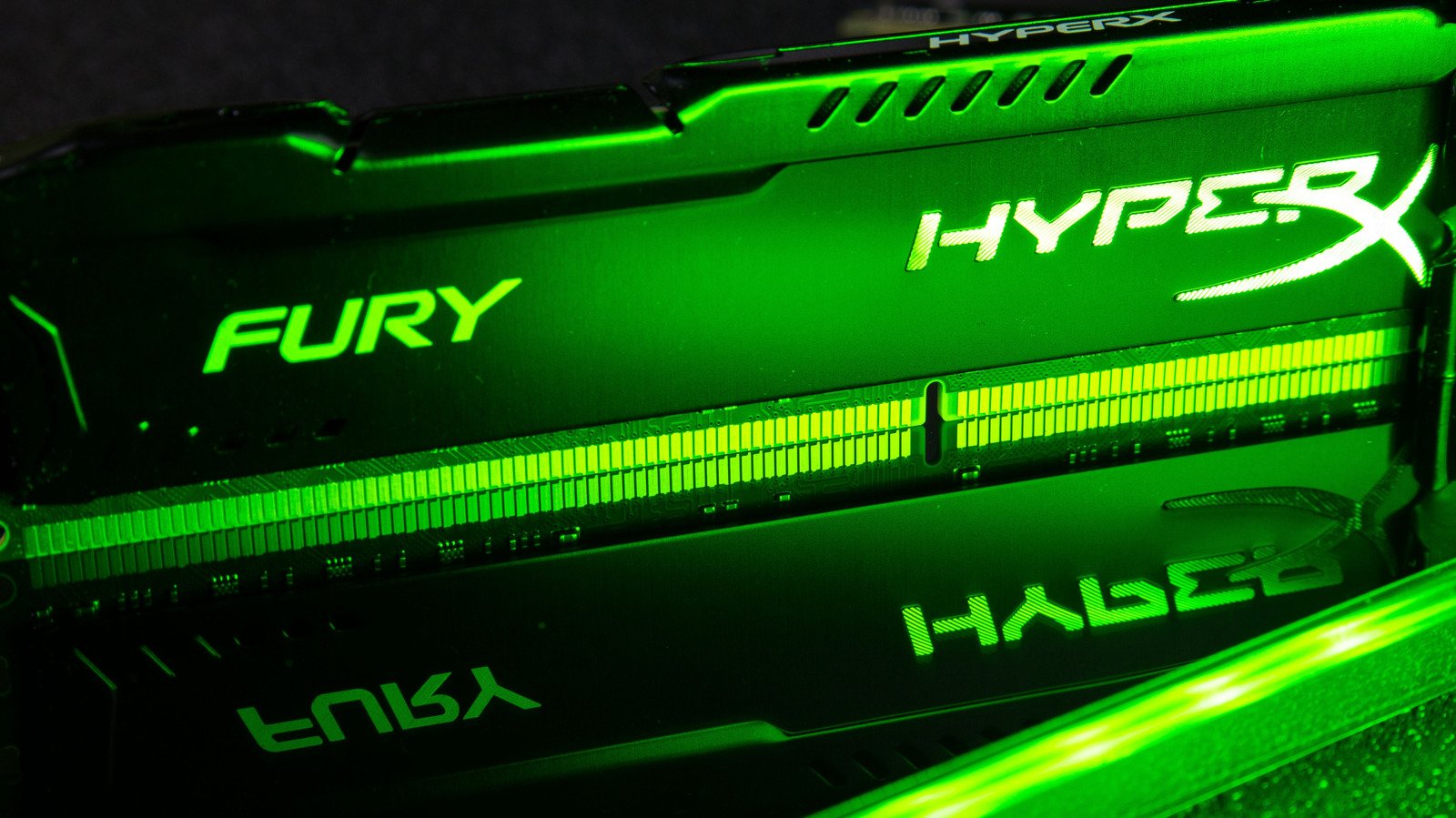

When you’re a PC fanatic or have constructed your personal rig, you may most likely be aware of the (now wildly costly) DDR5 sticks they use. Telephones and skinny laptops use a unique sort (LPDDR) that is soldered to the board, whereas graphics playing cards cluster GDDR chips across the GPU. Increased RAM capability means you may run extra apps, open extra tabs and play extra highly effective video games earlier than the system begins swapping to slower storage.

We noticed typical DRAM contract costs rise by a staggering 90 to 95 p.c quarter-over-quarter initially of the yr (in response to TrendForce). That is as a result of AI information facilities are absorbing just about all the availability as firms race to get them constructed, like NVIDIA’s plans to speculate as much as $100 billion in OpenAI to construct 10 gigawatts of AI information facilities. Whereas that particular deal is stalled, it is one illustration of many to point out what’s driving costs as much as highs by no means seen earlier than and slicing provides to common shoppers.

Final yr, Micron introduced it will kill its Essential shopper model so it will possibly focus extra on high-margin AI information heart demand. It ceased operations again in February. This is not the primary time a reminiscence crunch has hit shoppers: Huawei blamed slower P10 units on a reminiscence scarcity again in 2017, after it discretely blended quicker and slower flash chips in the identical telephone mannequin.

The earliest ROM chips had their information bodily constructed into the circuitry, so any modifications meant going again to the manufacturing facility for brand new silicon. Programmable ROM (PROM) acquired round this in 1956. Its inventor, Wen Tsing Chow of American Bosch Arma, designed it so the US Air Pressure might load focusing on information into missile steerage computer systems by blowing microscopic fuses contained in the chip. However since you may solely blow a fuse as soon as, each write to PROM was everlasting, together with any inevitable errors.

Intel engineer Dov Frohman then got here alongside in 1971 with the EPROM, an erasable chip he developed after investigating a reliability fault in one other Intel product. Every EPROM carried a small quartz window, and shining UV mild by it for a couple of minutes wiped the chip clear for reprogramming. EEPROM later dropped this by making erasure electrical. Fujio Masuoka of Toshiba then pushed the thought to its conclusion with flash reminiscence, which was launched as NOR flash in 1984 and adopted with NAND flash in 1987. You will now discover NAND in each SSD, smartphone, reminiscence card and USB in the marketplace.

Regardless that the firmware chip in your PC’s motherboard remains to be referred to as the BIOS ROM, it is really a small flash chip that will get rewritten with firmware updates. It is the identical story in your telephone, the place the ROM Xiaomi lists for the Redmi 13 is common UFS or eMMC flash with system partitions locked to read-only. Enjoyable truth: You might need come throughout correct ROM chips within the type of previous plastic sport cartridges. That is why the recordsdata ripped from them for emulators are referred to as ROMs.

Correct factory-set ROM does nonetheless exist, however you are solely going to seek out it within the deepest depths of low-cost electronics; tiny microcontrollers working code that’ll by no means change. In all places else, RAM nonetheless means what it did six a long time in the past, whereas ROM has develop into the de facto shorthand for no matter reminiscence you are not supposed to the touch.
